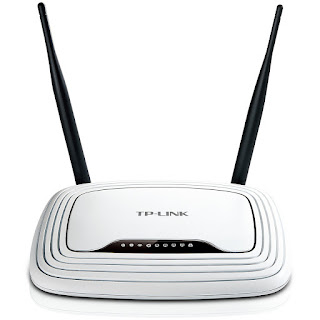

TP-LINK TL-WR841N WiFi Router Specifications features overview tplink the without gaming, online or streaming, HD VoIP, including application intensive bandwidth any almost with smoothly work to speed has router means, also Which not! may products 11g legacy where connection long-distance during network wireless up pick easily could you all, Above building. steel-and-concrete an in even apartment, large office small obstacles through and distances long over loss data mitigating of abilities excellent more shows.
Performance Wireless Better 300Mbps. rates transmission Also, products. conventional range 5X 15X get establish can TL-WR841N standard, 802.11n IEEE Complying Range & Speed N intrusions. outside from preventing encryptions, WPA2 ensures exterior fashionable sleek on button WPS gaming. VoIP making the video, streaming for ideal it makes performance advanced exceptional TL-WR841N’s requirements. networking home business specifically designed device wired/wireless combined is Router 300Mbps.
TP-LINK TL-WR841N WiFi Router Features:
- Speed up to 300Mbps
- Ideal for interruption sensitive applications like HD video streaming
- Two antennas greatly increase the wireless robustness and stability
- Easy wireless security encryption at a push of WPS button
- IP based bandwidth control
- Compatible with IPv6 -the more recent Internet Protocol version
TP-LINK TL-WR841N WiFi Router Specifications:
- Interface:
4 x 10/100Mbps LAN PORTS
1 x 10/100Mbps WAN PORT
Button:
WPS/Reset Button
Wi-Fi On/Off Button
Power On/Off Button
Antenna
2 x 5dBi Fixed Omni Directional Antenna
External Power Supply
9VDC / 0.6A
Wireless Standards
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Dimensions ( W x D x H )
7.6 x 5.3 x 1.3 in.(192 x 134 x 33 mm)
Frequency
2.4-2.4835GHz
Signal Rate
11n: Up to 300Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)
Reception Sensitivity
270M: -70dBm@10% PER
130M: -74dBm@10% PER
108M: -74dBm@10% PER
54M: -77dBm@10% PER
11M: -87dBm@8% PER
6M: -90dBm@10% PER
1M: -98dBm@8% PER
Transmit Power
CE: <20dBm
FCC: <30dBm
Wireless Functions
Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics
Wireless Security
64/128/152-bit WEP / WPA / WPA2,WPA-PSK / WPA2-PSK
SOFTWARE FEATURES
Quality of Service WMM, Bandwidth Control
WAN Type
Dynamic IP/Static IP/PPPoE/
PPTP/L2TP/BigPond
Management Access Control
Local Management
Remote Management
Firewall Security
DoS, SPI Firewall
IP Address Filter/MAC Address Filter/Domain Filter
IP and MAC Address Binding
Protocols Support
IPv4 and IPv6
Guest Network
2.4GHz Guest Network x1
Certification CE, FCC, RoHS
System Requirements
Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, Windows8/ 8.1/10
MAC OS, NetWare, UNIX or Linux
Environment
Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
How to find the hardware version on a TP-Link device?
Some
TP-Link products may have more than one hardware version. For example,
a name ending with V1, V2, etc. Choose methods below to find the
hardware version of your TP-Link products. Using the label on the back
of the device.
- For most of products Using the engraved characters on the device
- For products (USB adapters) without labels: Using the management interface of the device
TL-WR841N_v7_120201
Published Date: 2012-02-07
Language: English
File Size: 3.21 MB
Modifications and Bug Fixes:
Fix the bug that cannot connect to the PPTP/L2TP server successfully.
Improve the dyndns function.
Notes:
For TL-WR841N & TL-WR841ND
(Google Drive, Mediafire, Official)
TL-WR841N(UN)_V8_170210
Published Date: 2017-02-10
Language: English
File Size: 3.48 MB
New Features/Enhancement:
Optimized the security mechanism.
Notes:
1. For TL-WR841N(UN)_V8.
(Google Drive, Mediafire, Official)
TL-WR841N(US)_V9_150401
Published Date: 2015-04-01
Language: English
File Size: 3.13 MB
Notes:
1.For TL-WR841N(US)9.0
(Google Drive, Mediafire, Official)
TL-WR841N_V11_151021_US
Published Date: 2015-10-21
Language: English
File Size: 3.62 MB
Notes:
1.For TL-WR841N(US)11.0
(Google Drive, Mediafire, Official)
TL-WR841N(US)_V13_180119
Published Date: 2018-02-24
Language: English
File Size: 4.73 MB
Modification and Bug Fixes:
1. Fixed WPA2 (KRACKs) vulnerability.
2. Fixed the bug that router cannot forward some specific DNS requests.
3. Shorten the interval time to reconnect to PPPoE server after disconnection.
4. Improved the stability of Quick Setup.
(Google Drive, Mediafire, Official)
TL-WR841N(US)_V14_210203
Published Date: 2021-04-09
Language: English
File Size: 4.35 MB
Modifications and Bug Fixes
1. Add the WPA3 encryption;
2. Enhance device security;
3. Optimize wireless functionality.
