✓ Download Latest Driver Version TP-LINK TF-3200 PCI Network

TP-LINK TF-3200 Features

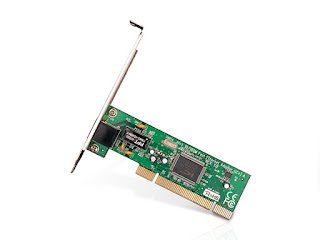

• The TF-3200 10/100M PCI Network Adapter is a highly integrated and cost-effective Fast Ethernet Adapter that provides 32-bit performance,
• PCI bus controller and full compliance with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX specifications and IEEE 802.3x Full Duplex Flow Control


TP-LINK TF-3200 PCI Network Adapter specifications

• Standards: IEEE 802.3, 802.3u, 802.3x
• Protocol: CSMA/CD, TCP/IP, PCI Revision 2.1/2.2
• Interface: 32-bit PCI / 1 10/100Mbps RJ45 port

• Network Media

1. 0BASE-T:UTP category 3, 4, 5 cable (maximum 100m)
2. EIA/TIA-568 100Ω STP (maximum 100m)
3. 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
4. EIA/TIA-568 100Ω STP (maximum 100m)


• Data Rates


1. 10/100Mbps for Half-Duplex mode
2. 20/200Mbps for Full-Duplex mode
3. LED Indicator: Link/Act


• Flow Control: IEEE 802.3x Flow Control (Full-Duplex)
• Certification CE, FCC, RoHS
• Package Contents: Network Adapter
• System Requirements: Win 98SE/Me/NT/2000/XP/Vista/7, Linux/Novell Netware
• Environment Operating Temperature: 0℃~40℃ (32℉~104℉)
• Storage Temperature: -40℃~70℃ (-40℉~158℉)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing

How to find the hardware version on a TP-Link device?

Some TP-Link products may have more than one hardware version.  For example, a name ending with V1, V2, etc. Choose methods below to find the hardware version of your TP-Link products. Using the label on the back of the device.

• For most of products Using the engraved characters on the device
• For products (USB adapters) without labels: Using the management interface of the device

Download Driver TP-LINK TF-3200 PCI Network

File Size: 386.572 KB

Operating System: Win98SE/Me/2000/ XP/2003/ Vista/7/Linux/Novell NetWare

Modifications and Bug Fixes:

Add windows 7 driver.

(Google Drive, Mediafire, Official)

Notes:

Currently TP-LINK only has version 1 of this network card.
